Tree Decay Detection
Advanced PiCUS Sonic Tomography
If you are concerned about the structural condition of a tree, our PiCUS Sonic Tomography service provides advanced tree decay detection without unnecessary damage to the tree.
Not all tree defects are visible from a ground level visual assessment alone. While an experienced arboricultural consultant can identify many signs of defect or decline during a visual inspection, internal decay, cavities and structural weaknesses often remain hidden beneath the bark. If a tree displays fungal brackets, cavities, storm damage or other signs of deterioration, further investigation may be required before deciding whether it should be retained, managed or removed.
Specialist assessment tools, such as sonic tomography and Resistograph® micro-drilling, enable our arboricultural specialists to measure the extent and location of cavities, fungal activity and structural loss.
But why does this additional evidence matter?
- Supports proportionate, evidence-based tree-risk decisions.
- Helps landowners meet their legal duty of care.
- Reduces unnecessary felling of trees by distinguishing manageable risk from serious structural weakness and assists justification of tree retention.
- Promotes cost efficiency by reducing the need for expensive unjustified tree work.
At PJC Consultancy, we use PiCUS Sonic Tomography, IML-RESI PowerDrill Resistograph ® and FLIR E76 Thermal Imaging Camera to provide concise and professional tree decay detection for homeowners, developers, local authorities, estate managers and commercial clients. This advanced diagnostic technology enables us to assess the internal condition of standing trees with minimal disturbance, providing reliable evidence to support informed tree management decisions.
Investigating hidden internal tree decay.

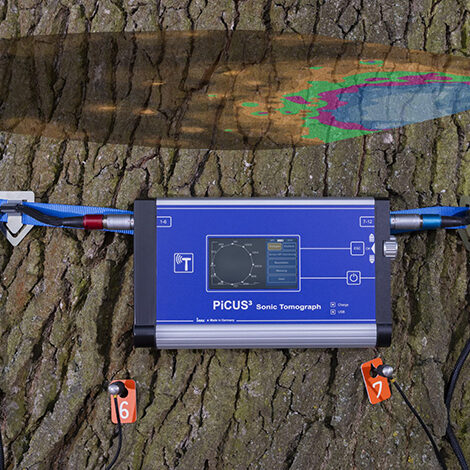

The system works by placing a series of sensors around the circumference of the tree stem. Sonic waves are transmitted between the sensors and sophisticated software measures the speed at which they travel through the wood. Healthy timber conducts sound differently to decayed or hollow sections, allowing the software to generate a colour-coded image showing the tree’s internal condition.
By combining PiCUS results with our professional arboricultural expertise, we can provide practical recommendations based on the overall condition of the tree rather than relying solely on external symptoms.
Seeing Inside Trees: Advanced Tree Decay Detection with PiCUS
It is possible to use the PiCUS sonic tomogram to determine the remaining wall thickness of hollow tree trunks or the spread of fungal defects. The area of the cross-section that is most severely decomposed is shown in blue, the lowest speed in this tomogram. In contrast, the intact wood appears in a dark brown colour. Stages between healthy and decomposed wood appear in colour gradations.
When is Tree Decay Detection recommended?
Tree decay detection using PiCUS Sonic Tomography is often recommended where:
- Fungal fruiting bodies are present on the trunk or buttress roots.
- Cavities or hollow sections have developed.
- The tree has suffered storm or impact damage.
- Longitudinal cracks or significant wounds are visible.
- A mature tree is located close to buildings, highways or areas used by the public.
- A previous tree inspection has identified possible internal defects.
- Tree retention is preferred, but further investigation is required before management decisions are made.
Frequently Asked Questions
Does PiCUS Sonic Tomography damage the tree?
Can PiCUS detect all types of tree decay?
Is tree decay always visible?
Will I receive a written report?
